Coax Calculator

Features Coax Calculator

An easy tool for the technician for calculating with coaxial cable.This tool is only for 75ohm cable networks.This tool is usable for:Coax attenuation calculations for:• Coax 1.5• Coax 3• Coax 6• Coax 9• Coax 12• Coax 18• RG6• RG11• RG59Level calculation on the AOP: • The best tap is calculated from the length and type of the coax.• The calculation uses a MT12 tap.
The level on the AOP should be minimal 62 and maximum 75dBuV.Manual:• All buttons are always fixed at startup.• Any change will be calculated immediately.• For convenience, you can use the sliders, but you can also use a keyboard.• Max.

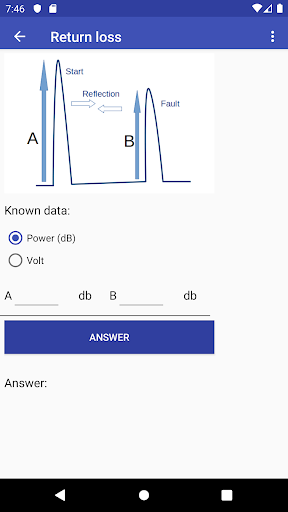

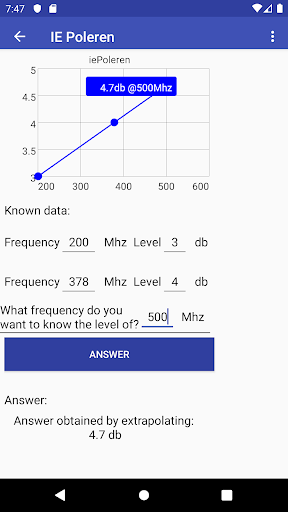

length and frequency adjustable in settings menu.Furthermore, these extra tools have been added to this app:• Calculate return loss.Calculate reflection damping for measuring equipment without reflection measurement.• Extrapolating measurements.Guess a 3rd measurement when two measurements are known.• Unit conversion.With this you can, for example, convert dBmV to various other units.Note:• In practice, signal attenuation can be different than calculated here.
This sometimes occurs because of aging of the cable, or by the manufacturer of the cable.• Sometimes a different tap connections is being used by a designer then what is calculated here.-----------------Requires: Android 5.1+ Questions / complain?
e-mail.Be sure to rate this app with your stars.
Much appreciated.Your feedback is welcome.For problems let me know what type of phone you have.
